Payment Type:L/C,T/T,D/P,D/A,Paypal
Incoterm:FOB,CFR,CIF,EXW
Min. Order:1 Piece/Pieces
Transportation:Ocean,Land,Air,Express

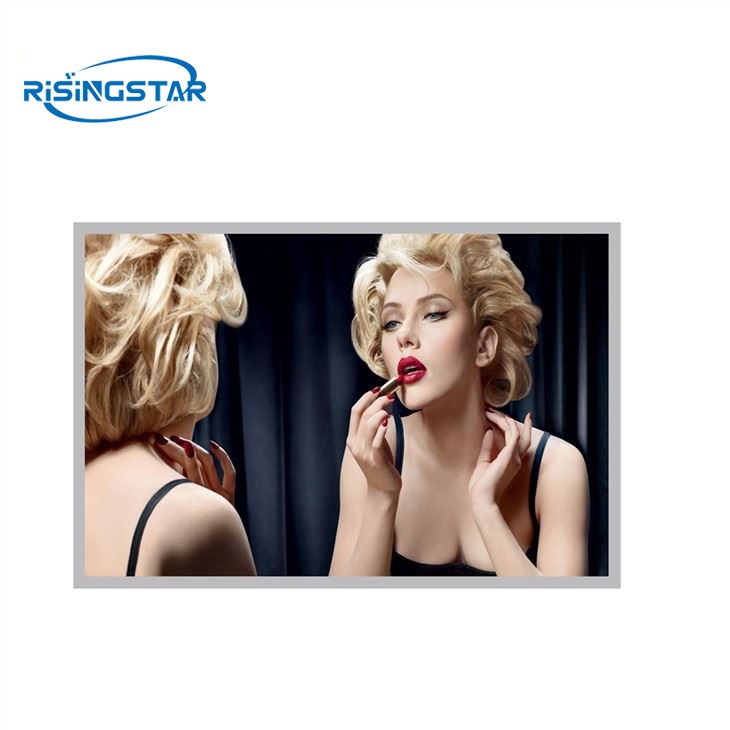

Model No.: LQ104V1DG62
Brand: SHARP
Size: 15-inches
Brightness: 550-nits
Brand: SHARP
Transportation: Ocean,Land,Air,Express
Place of Origin: shenzhen
Payment Type: L/C,T/T,D/P,D/A,Paypal
Incoterm: FOB,CFR,CIF,EXW
The operating temperature of LQ104V1DG62 is -30 ~ 80°C, and the storage temperature is -30 ~ 80°C. The pixels are arranged in RGB vertical stripes.
The display area size of LQ104V1DG62 is 211.2(W)×158.4(H) mm, the external size is 246.5(W)×179.4(H)×12.5(D) mm, the visible size is 214.6(W)×162.4(H) mm, The surface treatment is matte, Hard coating (3H), anti-reflection treatment, the net weight of the product is 580g (Max.). In terms of backlight, this product uses a 6S3P WLED edge-type light source (top), and the service life of the light source is 50K hours.
| brand | Sharp | Model name | LQ104V1DG62 |
| size | 10.4inch | Screen type | a-Si TFT-LCD,LCD Module |
| resolution ratio | 640(RGB)×480[VGA] 76PPI | Pixel configuration | RGB vertical bar |
| Display Area | 211.2×158.4 mm(H×V) | Surface treatment | Fog surface，Hard coating (3H)，Antireflection processing |
| Visual size | 214.6×162.4mm(H×V) | Contrast Ratio | 600:1 (Typ.) (TM) |
| Brightness(cd/m²) | 550cd/m²(Typ.)or customized | Outline dimension | 246.5×179.4×12.5mm(H×V×D) |
| Viewing Angle | 70/70/50/60(Typ.)(CR≥10) | work environment | Storage temperature: -30 to 80 °C Operation Temperature: -30 to 80 °C |
| Signal interface | Parallel RGB (1 ch, 6-bit),erminal,31 pins | | |
| supply voltage | 3.3/5.0V (Typ.)(VCC) | | |
Hot Tags: 15＂lq104v1dg62 550 nit tft new panel, China, factory, cheap, price, customized, quotation, window facing LCD, Full HD Outdoor Monitor, Large Outdoor Lcd Screen, Inch Outdoor Lcd Panel, outdoor high bright panel, 98 inch outdoor LCD screen, 21 5 ints outdoor advertising, lcd panel, Lcd Module, High Brightness Display.
