Payment Type:L/C,D/P,D/A
Incoterm:FOB,CFR,CIF,EXW
Min. Order:1 Piece/Pieces
Transportation:Ocean,Land,Air,Express
Port:Shenzhen

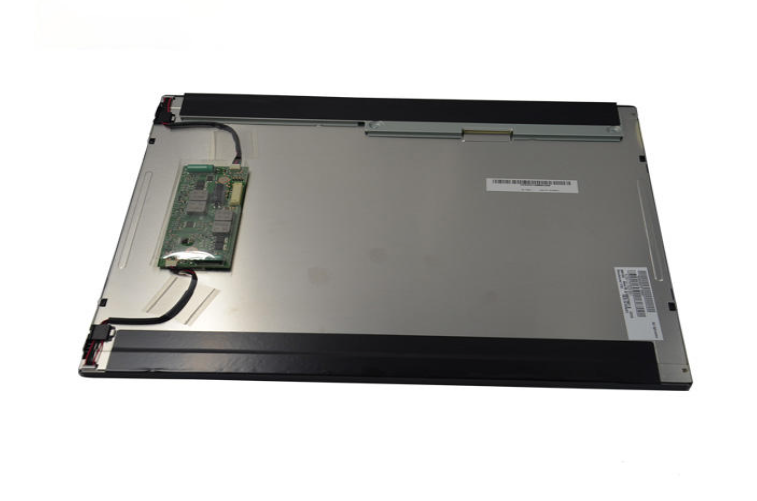

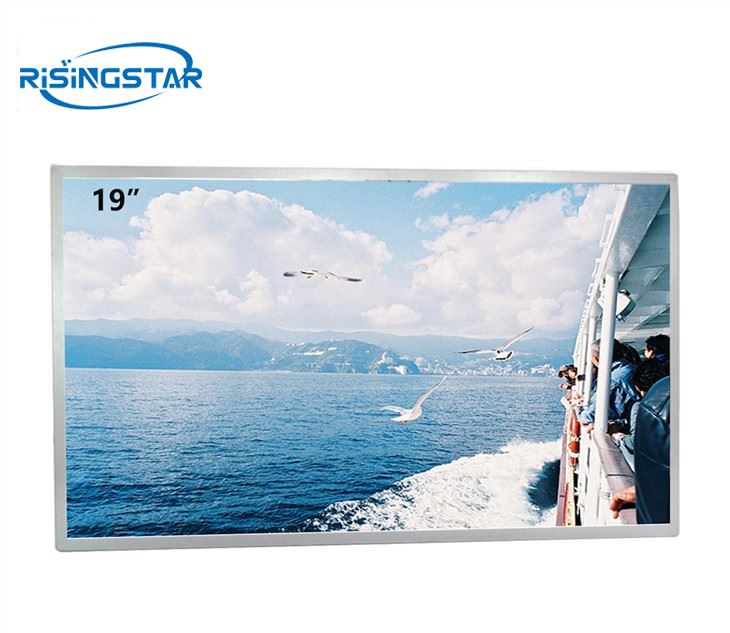

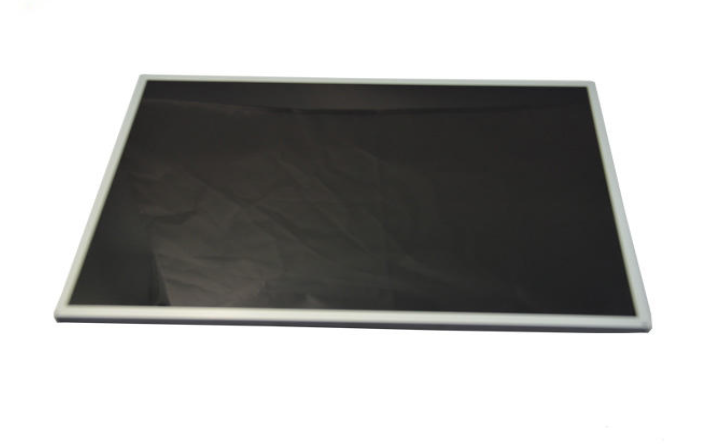

Model No.: G190ETN01.6
Brand: AUO
Size: 19-inches
Brightness: 1600-nits
Brand: AUO
Transportation: Ocean,Land,Air,Express
Place of Origin: Shenzhen
Port: Shenzhen
Payment Type: L/C,D/P,D/A
Incoterm: FOB,CFR,CIF,EXW
Panel upgrade, when the environment brightness is too high, it can still be clearly displayed, effectively prevent screen burns to the impact of the picture, in a long time static picture display will not appear screen residual shadow.
brand | AUO | Model name | G190ETN01.6 |
size | 19.0" | Screen type | a-Si TFT-LCD,LCD Module |
resolution | 1280(RGB)×1024, SXGA, 86PPI | Pixel configuration | RGB vertical bar |
Display size | 376.32×301.056(H×V) mm | Appearance of size | 396×324×26.59(H×V×D) mm |
Visual size | 380.3×305.036(H×V) mm | Surface treatment | Hard coating (2H),Antireflection processing |
Brightness(cd/m²) | 1600 cd/m² (Typ.) | contrast | 1000 : 1 (Typ.) |
Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Apply to | Industrial and outdoor highlighting |
Signal system | 30 pins LVDS (2 ch, 8-bit) , terminal | | |
Maximum rated | Storage temperature: -30 ~ 70 °C Working temperature: -30 ~ 70 °C | | |
