Shenzhen Risingstar Outdoor High Light LCD Co., Ltd
Shenzhen Risingstar Outdoor High Light LCD Co., Ltd
Min. Order:1 Piece/Pieces
Brand: RisingSTAR
Productivity: 125K
Place of Origin: SHENZHEN
Certificate: CE/ROSH/UL/ISO9001
Risingstar small size LCD screen.high brightness 1000nits/1500nits lcd screen for outdoor used.
Product feature:

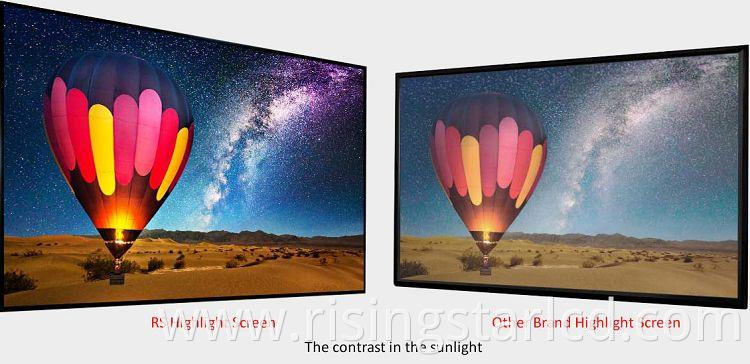

Display Clear Even Though Sunlight
NTSC 90% coverage, restore super image color, 500-1500nit custom brightness, precisely control the brightness of each area.
Shenzhen Risingstar Outdoor Highlight LCD Co., small size lcd screen uses a dedicated system for LED backlight, which is not only more energy efficient than traditional CCFL backlight, it is also quite bright.specializes in producing ultra-High Brightness Lcd modules that can be easily viewed in direct sunlight, such as store windows or outdoor cabinets.

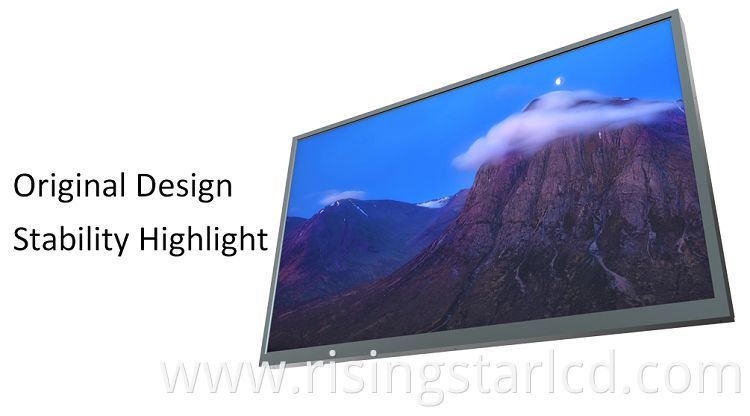

Original Design, Stability Highlight
Small size LCD screen with full size design.New original package display module structure and installation method thereof.High flexibility, excellent heat dissipation and convenient maintenance.
Color Temperature And Quality
Ensuring that the color and brightness of each picture match in a tile matrix can be time consuming and requires additional calibration hardware;Each Rising Star Outdoor's highlight screen is individually color calibrated to the D65 (6500K) CIE color standard;
This not only produces a true, natural white, but the color of all screens will be uniform.
Bright Highlight, Uniform Brightness, Color Saturation
Rising Star Outdoor's advanced color management solution provides more detailed color management options, allowing users to fine-tune colors either automatically or manually;Side-entry lighting design, brightness 500--1500nits (optional), brightness uniformity can reach more than 90%;
The color saturation is high, the picture is clear, and the picture quality is fine.
Full HD Resolution
Full high definition resolution, Risingstar high brightness liquid crystal module can provide customers with super sharp image pictures.It can ensure that the information on the screen is fully received by the customers, and the good visual effect will impress the customers.
Shenzhen risingstar small size lcd screen are widely used in industrial control displays, electronic class cards, new energy charging piles, express cabinets, outdoor handheld control panels, car custom screens, tankers, etc. All of these devices are special depend on the high brightness.
Specification
| Size Parameter | 7 | 8 | 10.1 | 12.1 | 13.3 | 15.6 | 18.5 | 21.5 | 23.8 | 27 |
| Resolution | 1200*1920 | 1280*720 | 1280*800 | 1920*1080 | 1366*768 | 1920*1080 | ||||
| Brightness | 500-1000nits | |||||||||
| Contrast Ratio | 1100:1 | 900:1 | 1300:1 | 700:1 | 800:1 | 500:1 | 1000:1 | 1000:1 | 1000:1 | 1000:1 |
| Viewing Angle | 80 / 80 / 80 / 80 | 85 / 85 / 85 / 85 | 85 / 85 / 85 / 85 | 80 / 80 / 80 / 60 | 85 / 85 / 85 / 85 | 85 / 85 / 80 / 80 | 89 / 89 / 89 / 89 | 85 / 85 / 80 / 80 | 89 / 89 / 89 / 89 | 89 / 89 / 89 / 89 |
| Best Viewing Angle | Wide Angel | ALL Angel | ALL Angel | Wide Angel | ALL Angel | Wide Angel | Wide Angel | Wide Angel | ALL Angel | ALL Angel |
| Refresh Rate | 60Hz | |||||||||
| Backlight Voltage | 12V | |||||||||
| Input Voltage | 3.3V | 5V | ||||||||
| Power | 5-6W | 6-8W | 5-9W | 5-9W | 10-18W | 10-20W | 15-20W | 20-27W | 25-30w | 30-55w |
| Operating Temperature | -10~60℃ | -30~85℃ | -20~70℃ | -30~80℃ | -30~80℃ | 0 ~ 50℃ | ||||
| Storage Temperature | -30~70℃ | -40~85℃ | -30~80℃ | -30~80℃ | -30~80℃ | -20~ 60℃ | ||||
| Active Area | 94×151 | 177× 99 | 216×135 | 261× 163 | 293 × 165 | 344×193 | 409×230 | 476×268 | 527×296 | 597×336 |
| Outline Size | 98×160 | 192× 116 | 227×148 | 283×185 | 309 × 184 | 363×215 | 430×254 | 495×292 | 543×317 | 611×355 |
Hot Tags: small size lcd screen, China, factory, cheap, price, customized, quotation, window facing LCD, Ultra Brightness Screen, display screen uk, 55inch Outdoor Lcd screen, 21 5 cheap screens, 49inch outdoor lcd screen, 2000 Nits LCD Screen, Lcd Panel, LCD Module, High Brightness Display.
