12.1" Parameter
| Items | Specification | Unit | Note |
| Active Screen Size | 12.1 | Inches | |
| Display Area | 261.12*163.2 | MM | |
| Outline Dimension | 278*184*9.6 | MM | |
| Driver Element | A-Si TFT active matrix | | |
| Display Colors | 16.7M | Colors | |
| Color Gamut | 72 | % | |
| Number of Pixels | 1280*800 | Pixel | |
| Pixel Arrangement | RGB vertical stripe | | |
| Pixel Pitch | 0.068*0.204 | MM | |
| Display Mode | Normally Black | | |
| Surface Treatment | Haze 2%, 3H | | |
| Brightness | 1000 | Nits | |
| Power | 24 | W | |
| Zoom | 16:10 | | |
| Working temperature | -30~90 degress | | |
| Weight | 1.2 | Kg | |
| Backlit life | 50000 | Hr | |

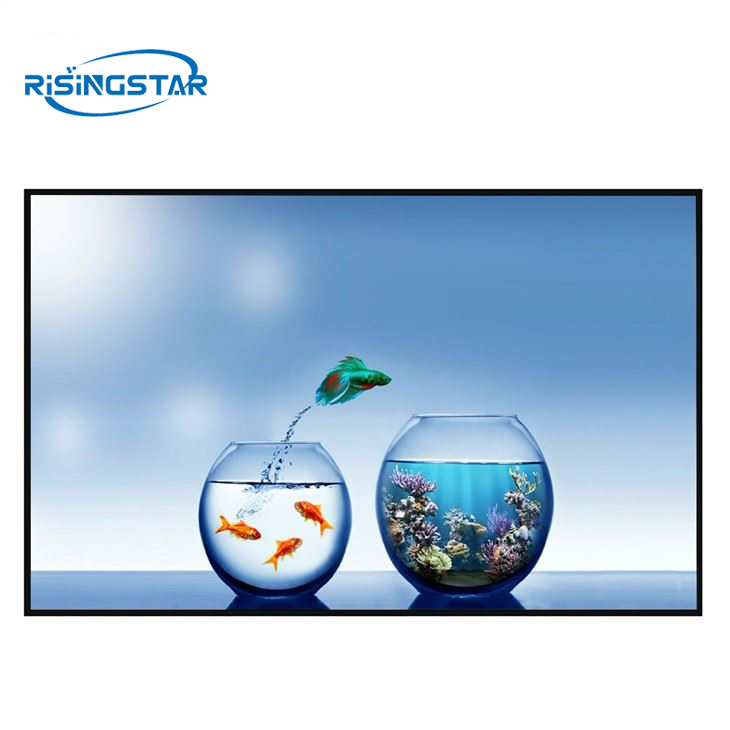

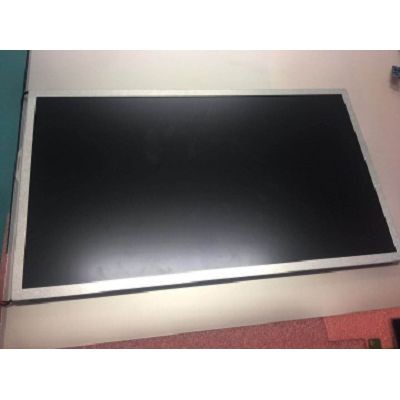

1000 nits on-board Lcd Display are windely used in car/bus display ,Risingsatr ar custom high bright LCD screen is available in sizes: 10.1”, 10.4” 12.1”12.3" 13.3”15.6", etc.
On-board lcd display with AUO industrial lcd brand,Equipped LED side-enty backlight for uniform bightness.Use the Led backlight is not only more energy efficient than traditional CCFL backlights, but also quite bright.
Product Feature
Small size and light weight, can fit any kind of occasion.
Support automatic environment light, anti surge protection, leakage protection, overvoltage overload and waterproof function.
The LED chips have the advantages of low power consumption and good color uniformity.
The brightness can be optional 500 nits-1500nits
Product Description
This 1000nits on-board LCD display is made of extra quality material, and the surface of the Digital Signage is covered with high fluoroscopy. In addition, the high quality stereo speakers combines audio and video enjoyment shock together. Besides, the screen has light sensor which can adjust the brightness according to the surrounding.
There is no doubt that the intelligent precision temperature control and ambient light system can carry out energy-saving heat maximization without affecting the display effect. And it can be widely used in vehicles, industrial control displays, electronic class cards, new energy charging piles, etc.
