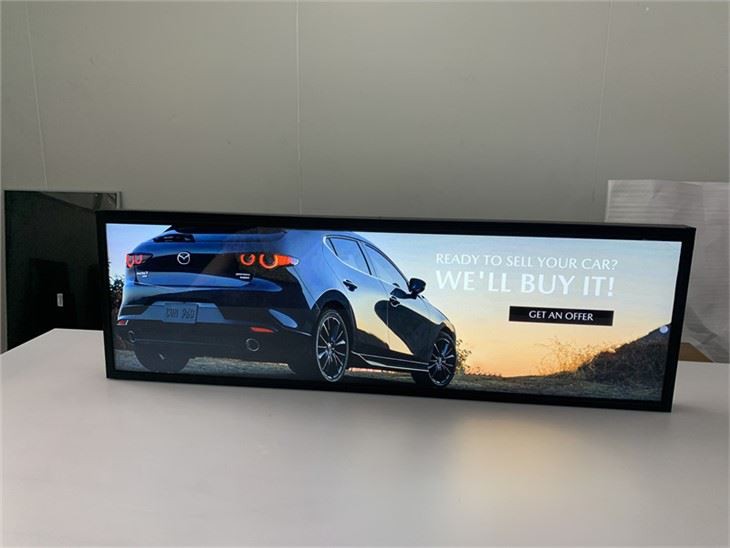

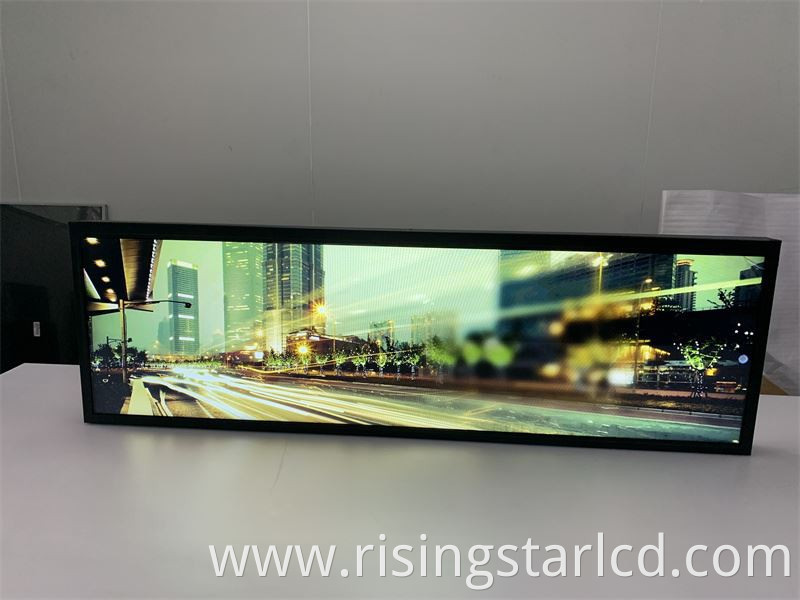

The working temperature of RV376FBB-N00 is -20 ~ 70°C, and the storage temperature is -30 ~ 80°C. It is used in Digital Signage, cutting Bar Screen and other products. The aspect ratio is >3:1 (width:height), and the pixels are arranged in RGB vertical stripes. Its display area size is 919.296 (width) × 258.552 (height) mm, the appearance size is 934.896 (width) × 271.052 (height) × 1.32 (thickness) mm, the surface treatment is haze (Haze 1%), Hard coating ( 3H).
Rising-star originated from Shenzhen, China, We are a professional manufacturer of high end highlight LCD, we can provide from 10.1 to 120 inch highlight TFT LCD modules, including semi-Outdoor Lcd, full Outdoor Highlight Screen, Ultrathin Highlight LCD,Outdoor splicing highlight LCD,Industrial Highlight TFT-LCD, transparent LCD and display frame, double-sided LCD, high-light double-sided LCD and other high-end Lcd Panel . In short, Rising has more than 5 years of high brightness backlight module technology experience, 8 years of large TFT module design, research and development, production capacity, 10 years of high-quality raw material supply chain.
brand | BOE | Model name | RV376FBB-N00 |
size | 37.6 inch | Screen type | a-Si TFT-LCD,LCD Module |
resolution ratio | 1920(RGB)×540 | Pixel configuration | RGB vertical bar |
Display Area | 919.296(H)×258.552(V)mm | Surface treatment | Haze 1%, Hard coating (3H) |
Visual size | / | Contrast Ratio | 1000:1 (Typ.) (TM) |
Brightness(cd/m²) | customized 500-2000cd/m²(Typ.) | Outline dimension | 951.9(H)*296.2(V)*40(D) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Backlight type | / |
Signal interface | 51 pins LVDS (2 ch, 8-bit),erminal | work environment | Storage temperature: -30 to 80 °C Operation Temperature: -20to 70 °C |
supply voltage | 12.0V (Typ.) | | |
