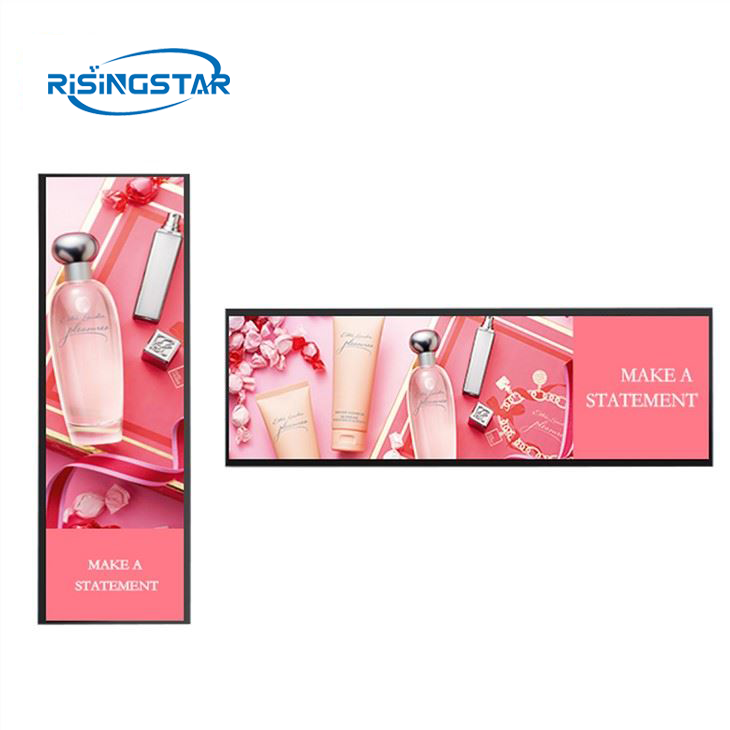

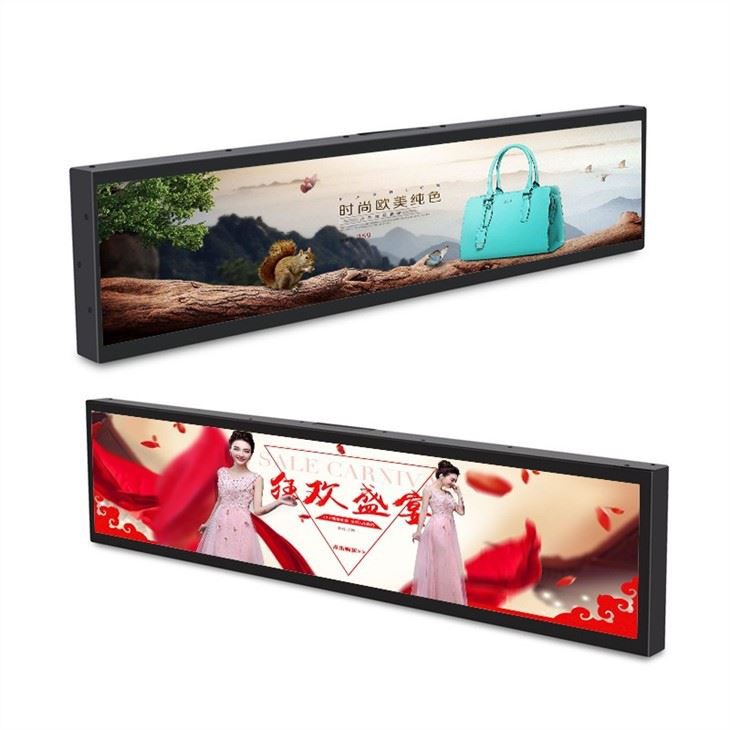

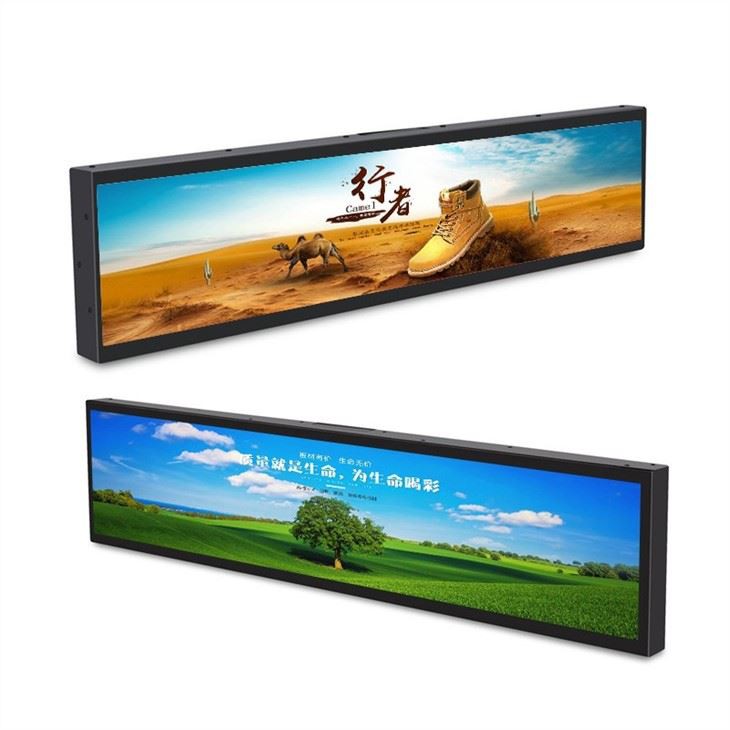

Stretched bar Lcd Display design for bus/metro,airport and other transportation,Shopping mall and retail shop,replacement the traditional paper display.
● High contrast, high brightness, greatly improving the layering of the picture, and better performance of details;Wide color range.
● Sync play or interaction play between different displays
● Shelf edge LCD display with slim and narrow bezel, advertisements are displayed without blocking the sight of consumers,.
● Support WIFI/LAN,3G/4G(optional).Optional Refee CMS software for content remote management.

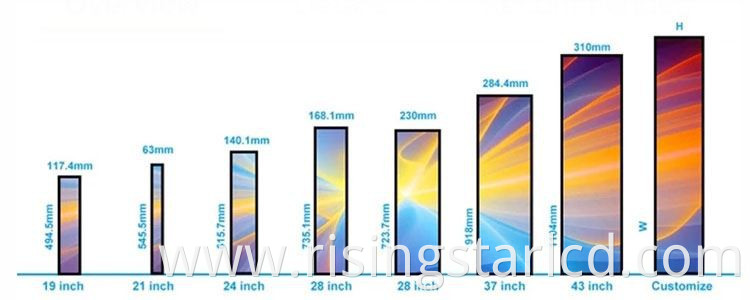

| Screen Size | 19’ | 21‘ | 24‘ | 28‘ | 29‘ | 37‘ | 43‘ | 48‘’ |
Panel info | Display Outline Size (mm) | 494*114 *46 | 545*62 *36 | 616*138 *46 | 735*168 *50 | 741*239 *46 | 932*286 *57 | 1114*231*46 | 1217*248*47 |
Display Area(mm) | 476(W) ×89(H) | 529(W) ×36(H) | 597(W) ×112 (H) | 699(W) ×131(H) | 698(W) ×196(H) | 904(W) ×254(H) | 1074(W) ×198(H) | 1194(W) ×223(H) | |
Aspect Ratio | <3:1 | <3:1 | <3:1 | <3:1 | <3:1 | <3:1 | <3:1 | <3:1 | |
Resolution | 1920 *360 | 1920 *132 | 1920 *158 | 1920 *360 | 1920 *540 | 1920 *540 | 1920 *360 | 3840 *720 | |
Brightness | 300nits | 300nits | 300nits | 700nits | 500nits | 700nits | 700nits | 1000nits | |
Contract Ratio | 1200:1 | 1200:1 | 1200:1 | 1200:1 | 4500:1 | 4000:1 | 1400:1 | 1000:1 | |
View Angle | 85/85/85/85 | ||||||||
Android Version | Model No. | BA19WR | BA21WR | BA24WR | BA28WR | BA29WR | BA37WR | BA43WR | BA48WR |
Operating System | Android OS | ||||||||
RAM | 2G | ||||||||
Flash | 16G (NAND Flash) | 8G | |||||||
I/O Port | USB*2/TF card slot/LAN RJ45 | ||||||||
Wi-Fi | 802.11b/g/n | ||||||||
Monitor Version | Model No. | BD19WR | BD21WR | BD24WR | BD28WR | BD29WR | BD37WR | BD43WR | BD48WR |
Interface | HDMI-IN |
