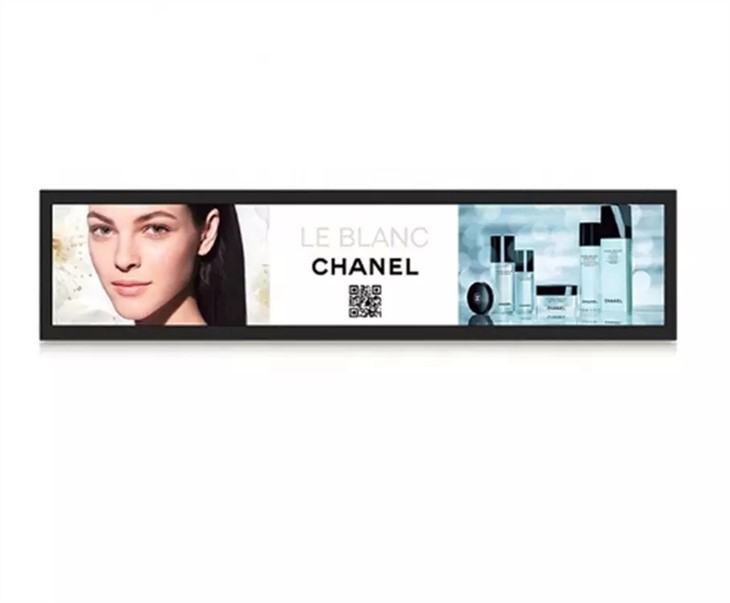

Size: 38.5 Inch
Brightness: 500 nits
TFT LCD screen,1920*158 resolution, 500nits, 1000:1 contrast ratio
2. Solution: Android 4core, ARM Cortex-A9 R4, 28nm , with USB,OTG WIFI RJ45,TF card,5.1OS, including software license,cloud control
3. Including bracket to fixed to the shelf
Panel Specifications | Panel type | TFT LCD |
Diagonal Aspect Ratio | 38.5 inch | |
Viewing Angle | H178º/ V178º | |
Luminance(nits) | 500cd/m2 | |
Contrast | 3000:1 | |
surface treatment | AG coating (Haze 40%) | |
Life(hrs) | more than 60000 | |
Connection | CPU | ARM Cortex-A9 R4, 28nm |
RAM | 1G | |
RJ45 | x1 | |
Storage | 8G EMMC | |
USB | x1 | |
OTG | x1 | |
WIFI | 802.11a/b/g/n | |
HDMI | NO | |
TF Card | can support up to 128GB | |
Power Supply | AC100~250V 50/60 HZ | |
Function | including software to upload advertising contents,cloud control | |
Display | AVI,MOV, MKV, WEBM,MP4, M4V, FLV, 3GP, 3G2,3GPP,DAT,VOB, EVO,MPG, ASF, TP, TRP, TS, M2TS, MTS, H. 265(HEVC)1080P 30fps,H.264 (BP/MP/HP level 4.1,1920X1080@60fps), H. 263(profile 3,1920X1080@60fps), S263(profile 3,1920X1080@60fps),MPEG-1(MP, 1920X1080@60fps),MPEG-2(MP, 1920X1080@60fps ), MPEG-4(ASP,1920X1080@60fps), Xvid(Home theater 1920X1080@60fps), MJPEG (baseline,1920X1080@60fps), ON2 (1920X1080@60fps),Divx(3.11,1280x720@60fps, support mulitple language display | |
Consumption | Power Supply | AC100~250V 50/60 HZ |
Max.Consumption | ≤2.75W | |
Dimension | Power Supply |
A 38.5-inch stretch bar display refers to a form factor that has a unique elongated shape, similar to a "bar" or "stretch." These displays are often used in applications that have limited horizontal space but require a wider aspect ratio than traditional screens.
When considering a 38.5-inch stretch bar display or any Digital Signage solution, it's essential to assess your specific requirements, including the intended use, location, budget, and technical specifications, to choose the most suitable option for your needs.
