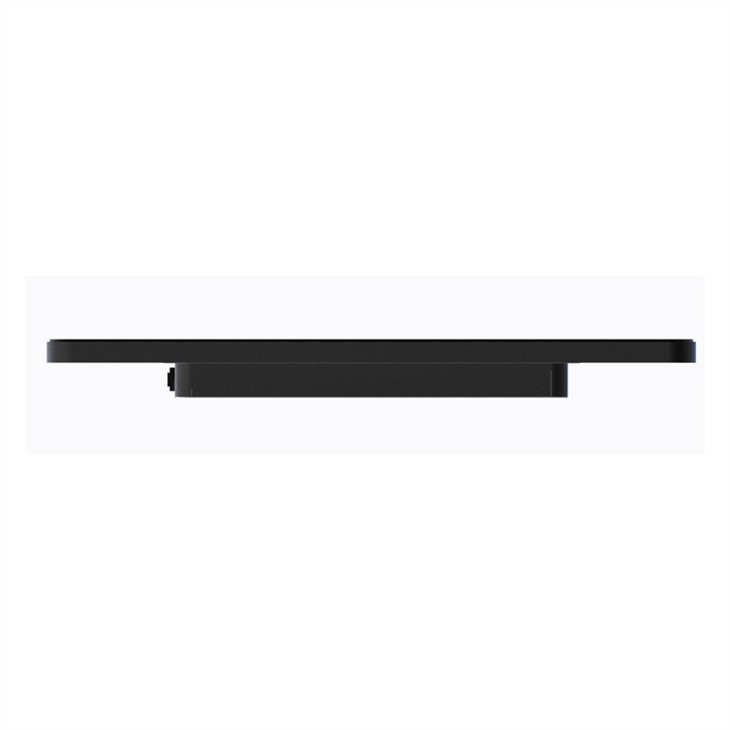

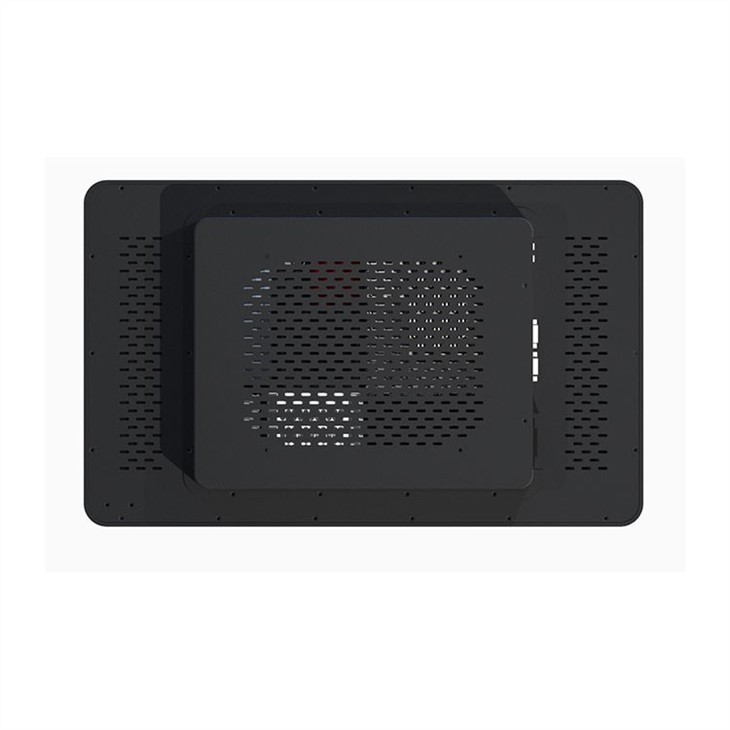

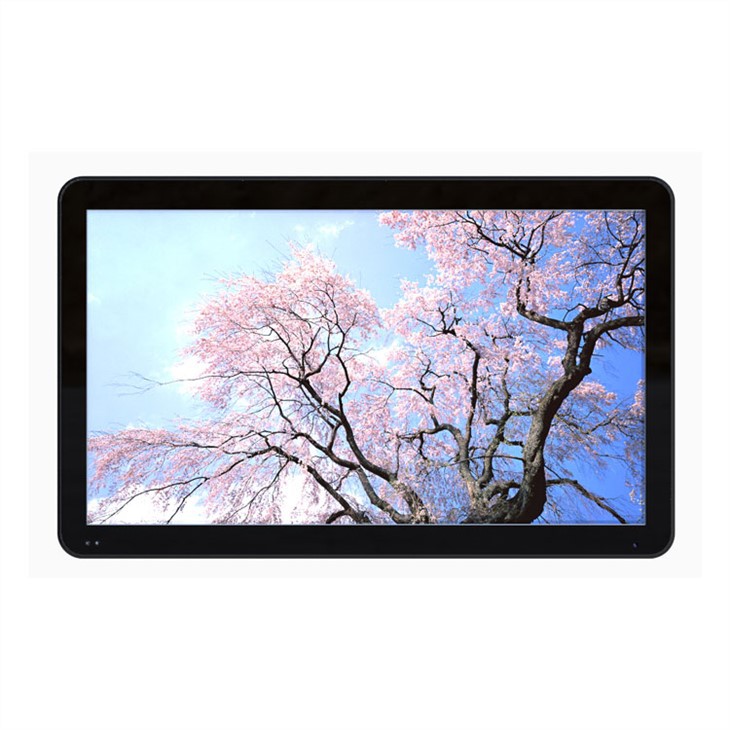

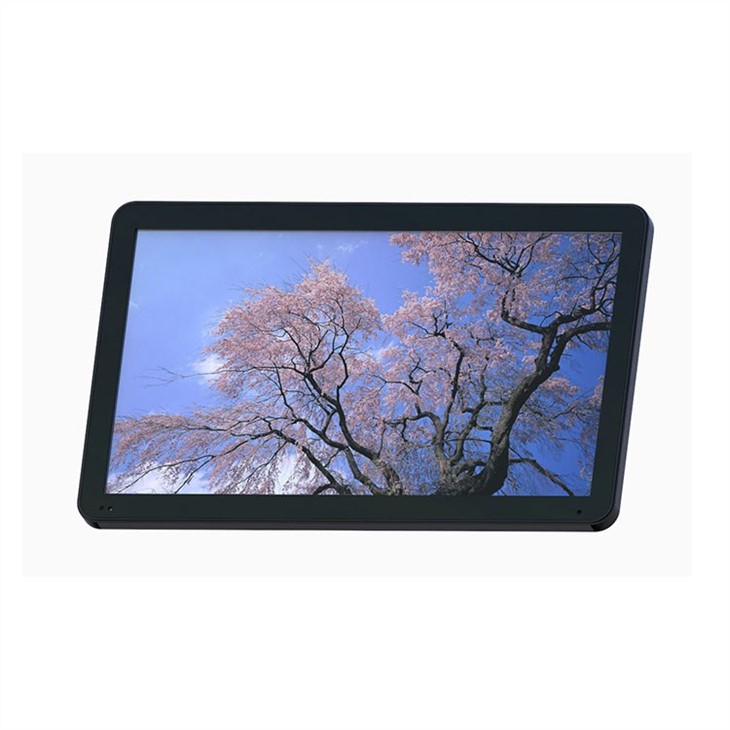

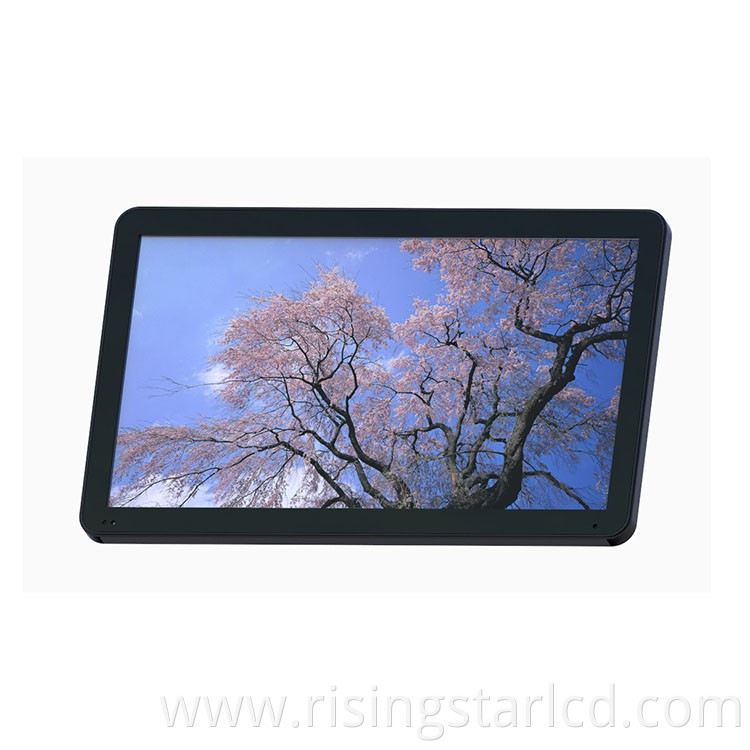

23.6 Inch DLED Backlight High Brightness LCD Panel
23.6 Inch DLED Backlight High Brightness LCD Panel
23.6 Inch DLED Backlight High Brightness LCD Panel
23.6 Inch DLED Backlight High Brightness LCD Panel
23.6 Inch DLED Backlight High Brightness LCD Panel
23.6 Inch DLED Backlight High Brightness LCD Panel

23.6 Inch DLED Backlight High Brightness LCD Panel

Min. Order:1 Piece/Pieces

Product Description
Packaging & Delivery
Selling Units:
Piece/Pieces
Each series of high brightness LCD display
Product Introduction
Panel Brand RISINGSTAR Panel Model RS236ZX-NE15
Panel Size 23.6″ Panel Type a-Si TFT-LCD
Resolution 1920(RGB)×1080, FHD  47PPI Pixel Format RGB Vertical Stripe
Display Area 544.8(W)×320.5(H) mm Bezel Opening /
Outline Size 577.8(W)×357.6(H)×52.2(D) mm Surface Antiglare (Haze 3%), Hard coating (2H)
Brightness 1500 cd/m²or customized Contrast Ratio 1000:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) Display Mode AMVA3, Normally Black, Transmissive
Display Colors 16.7M Response Time 6 (Typ.)(G to G)
Frequency 60Hz Input Voltage 12V (Typ.)
Backlight type WLED Signal Interface LVDS (2 ch, 8-bit) , 51 pins Connector
Environment Operating Temp.: -30 ~ 105 °C ; Storage Temp.: -40 ~ 110 °C

With the rise of digital displays, LED backlighting technology has become increasingly popular in LCD panels. LED backlighting offers high brightness and contrast levels, improved energy efficiency, and a longer lifespan compared to traditional fluorescent backlighting.

One of the main advantages of LED backlighting is its ability to provide a wider range of color gamut and color temperature options. This results in more accurate and vibrant color reproduction, making LED backlit LCD screens ideal for applications that require high color accuracy, such as movie theaters and graphic design studios.

236 inch DLED Backlight High Brightness LCD Panel

LED backlighting also offers improved energy efficiency compared to traditional fluorescent backlighting. By using less power, LED backlit LCD screens can help reduce energy costs and lower the carbon footprint of a display system. Another significant advantage of LED backlighting is its longer lifespan. LED-based backlit LCD screens have a lifespan of up to 100,000 hours, which is significantly longer than traditional fluorescent backlighting. This makes them more cost-effective and reduces the need for frequent replacements. LED backlit LCD panels are widely used in various industries, including healthcare, gaming, retail, transportation, and entertainment. They are commonly used in Digital Signage, medical equipment, gaming machines, and automotive displays due to their high brightness, energy efficiency, and accurate color reproduction.
