Shenzhen Risingstar Outdoor High Light LCD Co., Lt
Model No.: LTI480HN01

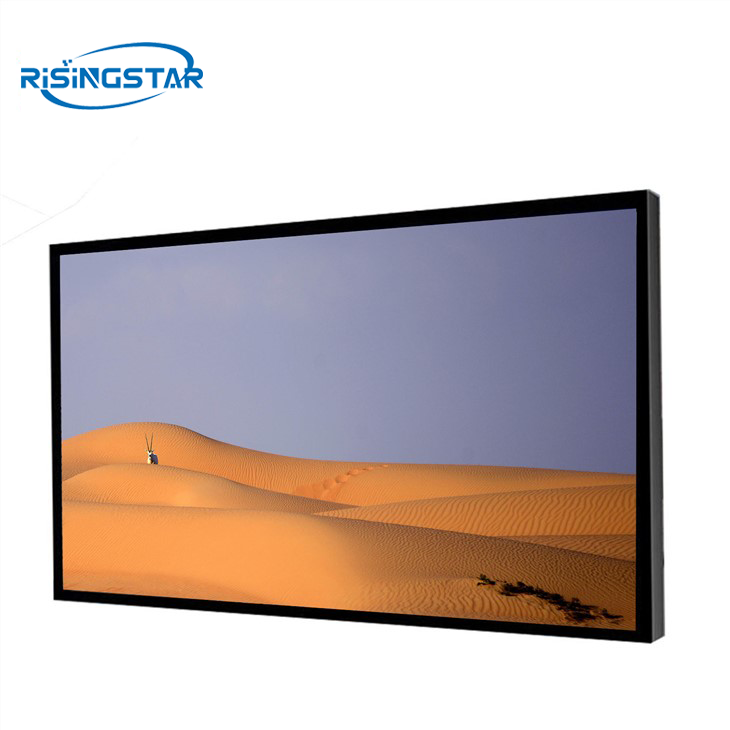

The LTI480HN01 display resolution is 1920 (RGB) × 1080 (FHD), the aspect ratio is 16:9 (width:height), and the pixels are arranged in RGB vertical stripes. The display area size of this display is 1054.08×592.92 (W×H) mm, the visible size is 1060.08×598.92 (W×H) mm, and the appearance size is 1079.88 (W)×618.72(H)×22.4(D) mm, the surface treatment is matte (Haze 25%), Hard coating (2H)
The operating temperature of this module is 0 ~ 50°C, and the storage temperature is -20 ~ 65°C. This model is suitable for use in Digital Signage.
Q：Is there any other size or specification can be choose?
A：If you need different sizes or specifications, we will provide the most suitable scheme according to your requirements.
Q：How long is the warranty?
A：Except the damage caused by human factors, one year warranty from the date of delivery. Special circumstances will be notified.
Q：How long is the warranty?
A：Except the damage caused by human factors, one year warranty from the date of delivery. Special circumstances will be notified.
| brand | RisingStar | Model name | LTI480HN01 |
| size | 46 inch | Screen type | a-Si TFT-LCD,Lcd Module |
| resolution ratio | 1920(RGB)×1080 | Pixel configuration | RGB vertical bar |
| Display Area | 1054.08×592.92(H×V)mm | Surface treatment | Fog surface(Haze 25%)，Hard coating (2H) |
| Visual size | 1060.08×598.92(H×V)mm | Contrast Ratio | 4000:1 (Typ.) (TM) |
| Brightness(cd/m²) | 700cd/m²(Typ.)or customized | Outline dimension | 1079.88×618.72×22.4(H×V×D)mm |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | work environment | Storage temperature: -20 to 65 °C Operation Temperature: 0 to 50 °C |
| Signal interface | LVDS (2 ch, 8-bit) ,erminal,51pins | | |
| supply voltage | 12.0V (Typ.) | | |
