Big Outdoor Lcd display screen from shenzhen risingstar.High brightness 1000-5000 nits .
Big outdoor Lcd Display screen features
The patented structural design provides excellent heat dissipation and structural strength.
Direct-lit lighting, super-open cell compatibility, full-size, full-vendor compatibility.

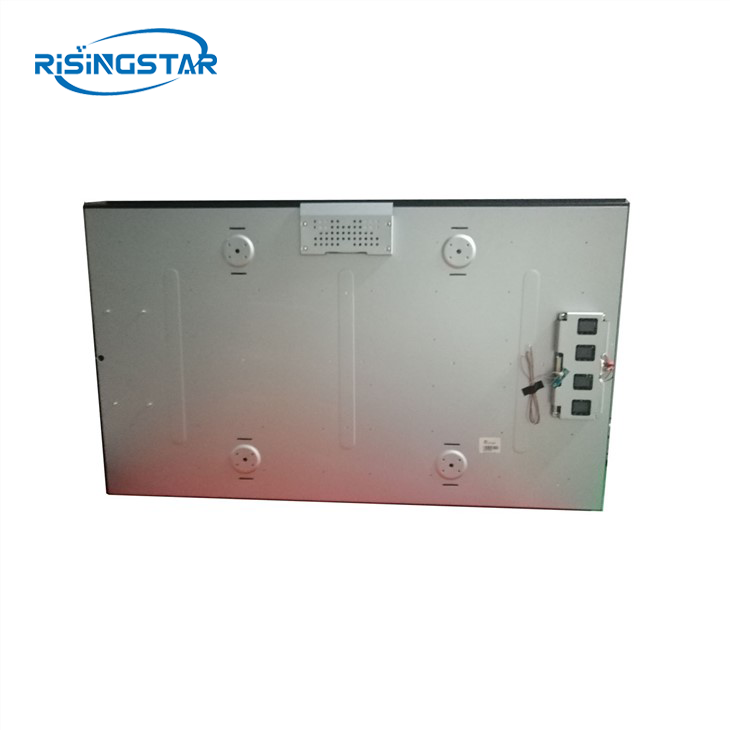

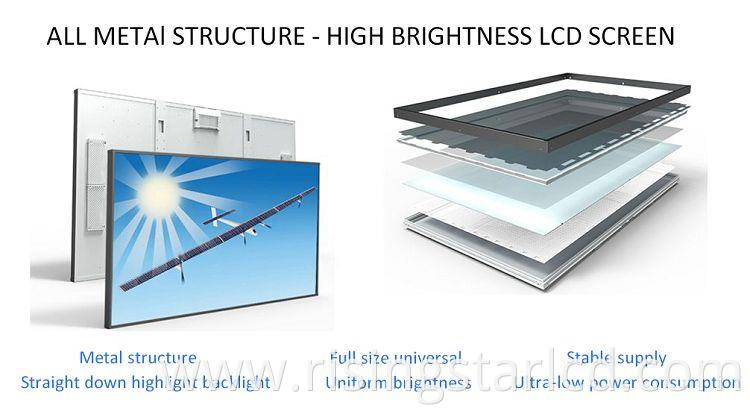

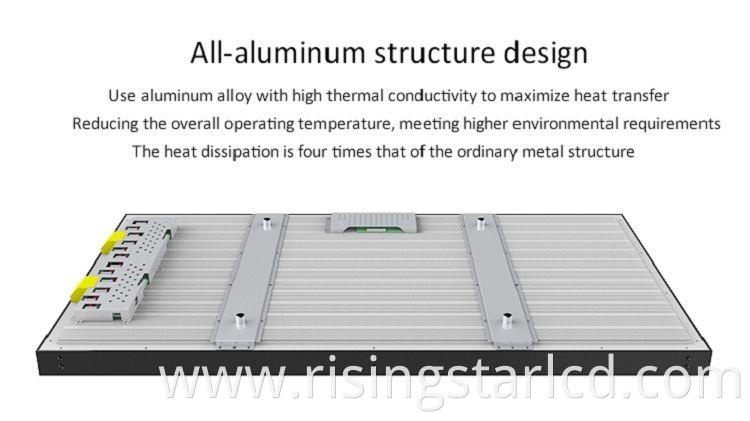

Big outdoor lcd display screen using an all-metal construction, the LB substrate also uses a high thermal conductivity metal material to maximize heat transfer, thereby reducing overall operating temperature and meeting higher environmental requirements.

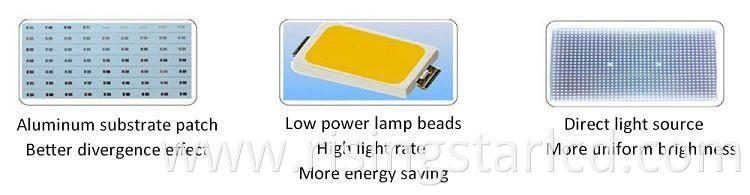

LED light source has higher light efficiency and can be easily viewed in direct sunlight.
Brand panel with low power consumption.
Can match with various outdoor display equipment.

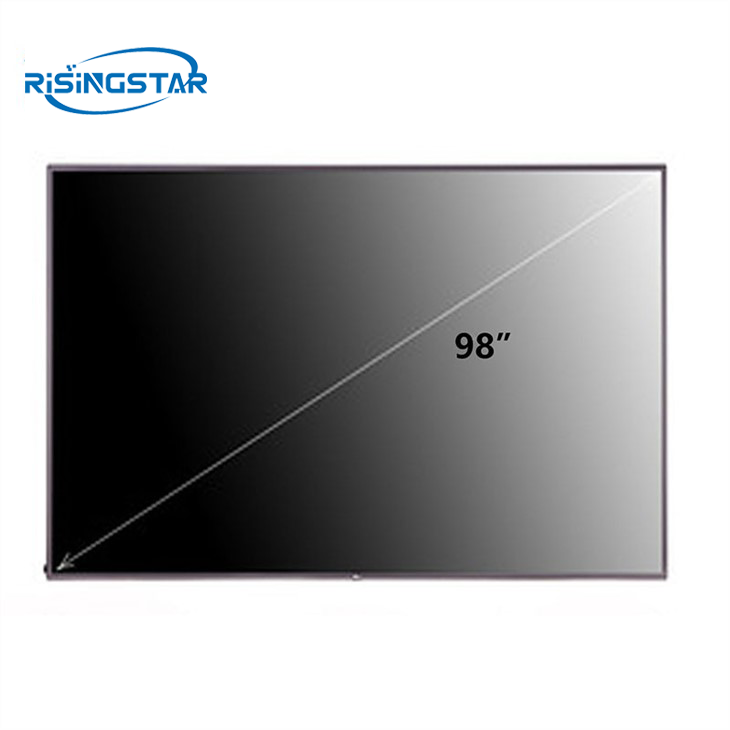

Rising Star provides outdoor high-brightness modules with large sizes: 32" 43" 49" 55" 65" 75" 86" 98" etc. Brightness 500nits--3500nits.
Parameter
| Display Size | 32 | 43 | 49 | 55 | 65 | 70 | 75 | 86 |
| Resolution | 1920x1080 | 1920x1080 | 2K/4K (Optional） | 4K | ||||
| Brightness | 500-4000 nits | |||||||
| Contrast Ratio | 1000：1 | 1200：1 | 1200:1 | 1400:1 | 1300:1 | 4000:1 | 4000:1 | 1200:1 |
| Refresh Rate | 60Hz | |||||||
| Response Time | 8ms | 8ms | 8ms | 6ms | 6ms | 6.5ms | 8ms | 8ms |
| Backlight Type | LED Driver | |||||||
| Power | 90w | 190w | 200w | 230w | 380w | 700w | 900w | 1200w |
| Outline Size | 729.08 × 426.09 × 62.5 mm | 965 × 557 × 39.52 mm | 1100.18 × 632.37 × 39.52 mm | 1239.88 × 711.38 × 64.5 mm | 1455.09 × 831.09 × 64.5 mm | 1581.44 × 906.26 × 64.5 mm | 1680.66 × 959.73 × 64.5 mm | 1928 × 1099 × 64.5 mm |

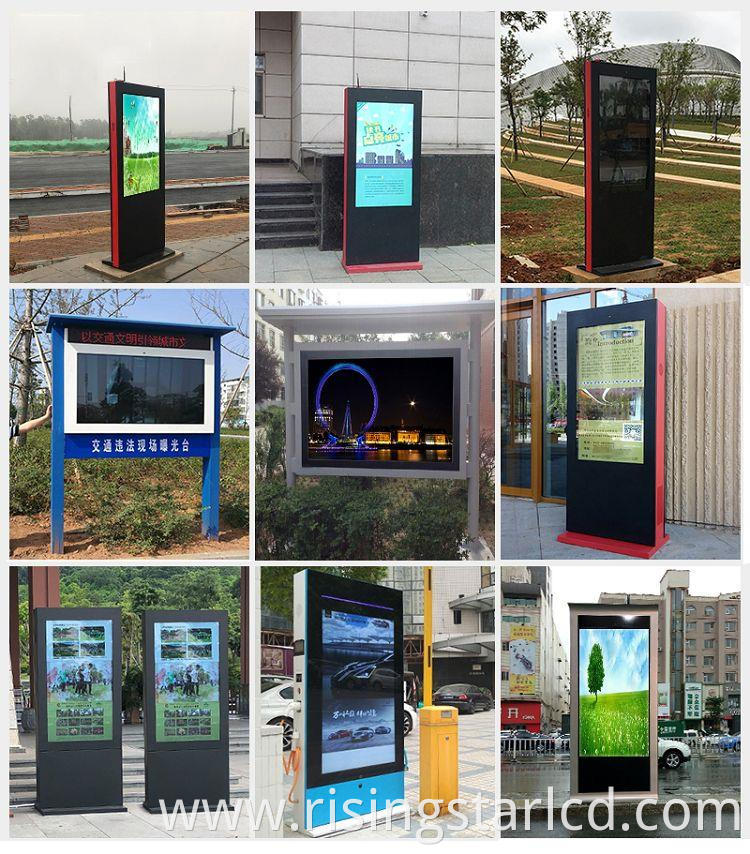

Risingstar outdoor lcd display screen are widely used in industrial control displays, electronic class cards, new energy charging piles, express cabinets, outdoor handheld control panels, car custom screens, tankers, etc. All of these devices are special depend on the high brightness.
The Case
