Shenzhen Risingstar Outdoor High Light LCD Co., Lt
Min. Order:1 Piece/Pieces
Brand: Risinglcd
Productivity: 160K
Place of Origin: SHEN ZHEN
Certificate: CE/ROSH/UL/ISO9001
| Panel Brand | RISINGSTAR | Panel Model | RS220WPM-NE10 |
| Panel Size | 22.0" | Panel Type | a-Si TFT-LCD , LCM |
| Resolution | 1680(RGB)×1050, WSXGA+, 90PPI | Pixel Format | RGB Vertical Stripe |
| Display Area | 473.76(W)×296.1(H) mm | Bezel Opening | 477.7(W)×300.1(H) mm |
| Outline Size | 493.7(W)×320.1(H) ×10.7(D) mm | Surface | Antiglare (Haze 25%), Hard coating(3H) |
| Brightness | 1000nit or customized | Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive |
| Display Colors | 16.7M 72% NTSC | Response Time | 1.5/3.5 (Typ.)(Tr/Td) |
| Frequency | 60Hz | Lamp Type | 3 strings WLED , 40K hours , Without Driver |
| Weight | 1.83Kgs (Typ.) | Input Voltage | 5.0V (Typ.) |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector | ||
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C | ||

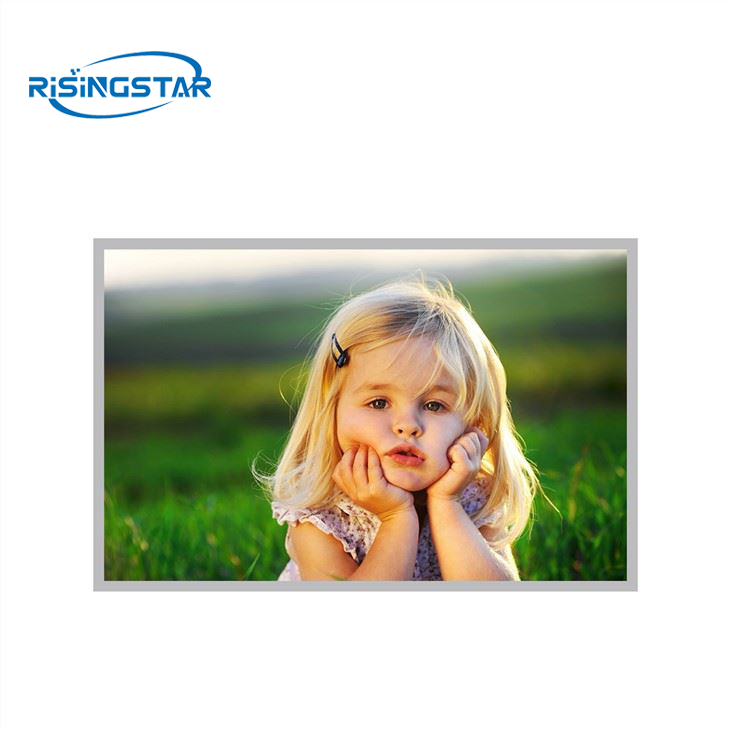

RS220WPM-NE10 is a 22 inch Sunlight Readable Lcd Display that supports LVDS interface. It can be operating at temperatures from -20~70℃ and storage temperatures range from -30~80℃. RS220WPM-NE10 is a 1000 nits high brightness TFT Lcd Module. It is suitable for industrial equipment, handheld devices, medical equipment, outdoor and semi-outdoor environment.
Features
1. High brightness, high contrast, fast response time, multi-color support, wide viewing angle;
2. National standard professional production line, millions of dust-free environment, the screen body and LED screen fit;
3. Certification, FCC, CE, CCC, UL, ROHS;
4. Professional LED backlight technology.
5. Sturdy structure, anti-external impact, metal chassis.
1. Professional Outdoor High Brightness Lcd Panel manufacturer
2. Professional high-brightness LCD screen, can withstand 110 high temperature
3. RisingStar, RisingStar, BEO, RisingStar, Innolux partner companies
4. Provide you with professional outdoor technical consultation and guidance
Q： Can I purchase a sample for my order?
A：Yes, please feel free to contact us.
Q：how can we guarantee quality?
A：Always final Inspection before shipment;
Q：What are our advantages?
A：Low price high quality products, timely tracking information.
Q：How long is the warranty?
A:We offer one year warranty from the date of delivery.
Q:Are you trading company or manufacturer ?
A: We are factory.
Hot Tags: 22 inch outdoor digital advertising display screens, China, factory, cheap, price, customized, quotation, window facing LCD, 1000 nit tft panel, lcd screen 98 inch, Full HD Outdoor Monitor, 55 inch lcd screen, Outdoor TV displays, 55 inch outdoor signage screen
