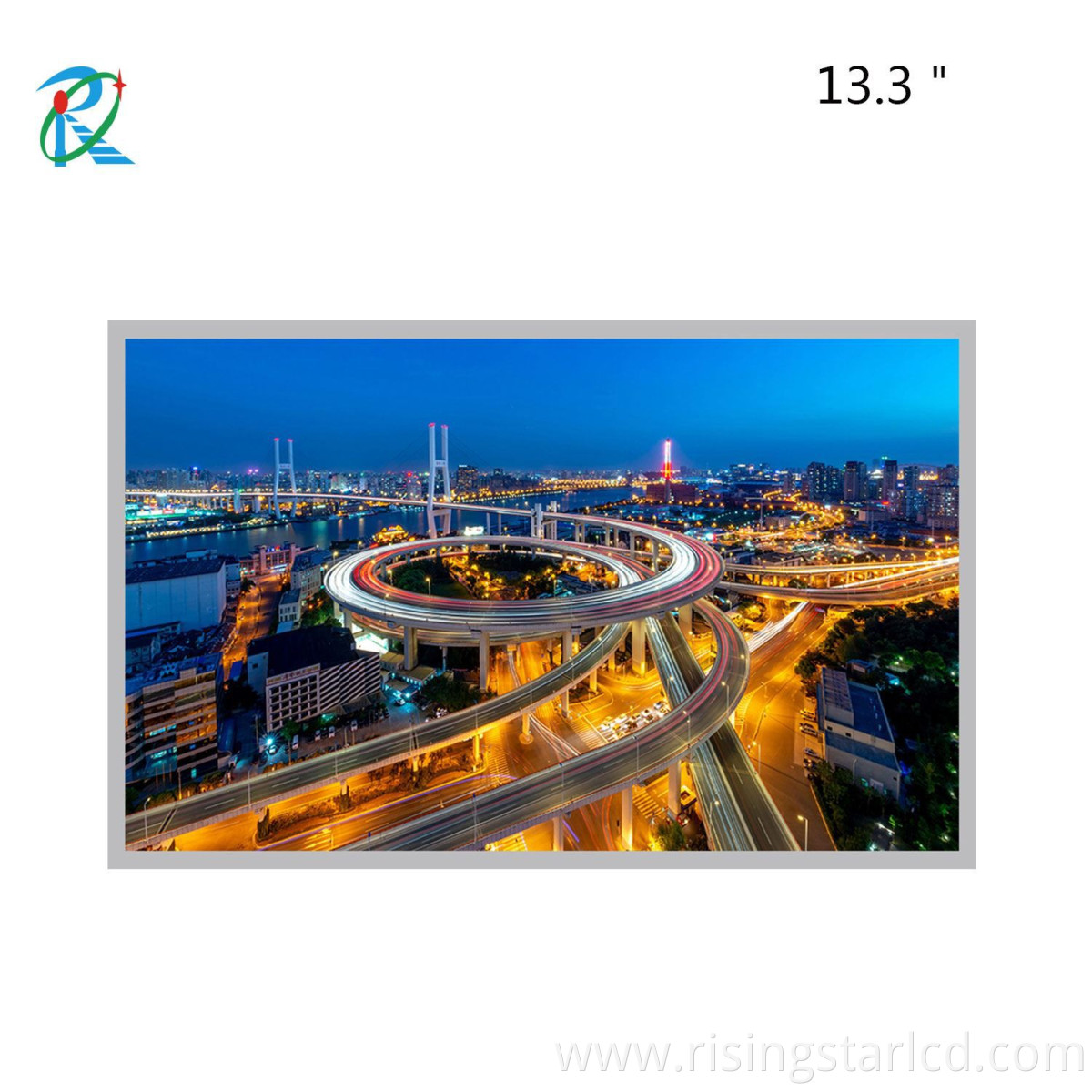

13.3" RisingStar Display LP133WF7-SPF1 brightness 1000nits sunlight readable TFT Lcd Module.
Auto-brightnessControl
The screen brightness is automatically adjusted depending on the ambient light. Brightness is increased during the day for better visibility, and decreased at night for efficient power management.
| brand | RisingStar Display (RisingStar Display) | Model name | LP133WF7-SPF1 (RisingStarD05DB) |
| size | 13.3" | Screen type | a-Si TFT-LCD,LCD module |
| resolution | 1920(RGB)×1080 [FHD] 166PPI | Pixel configuration | RGB vertical bar |
| Display size | 293.76 × 165.24 mm (H×V) | Surface treatment | Fog surface, Hard coating (3H) |
| Brightness(cd/m²) | 1000-1500 cd/m² (Typ.) | contrast | 1500:1 (Typ.) [transmission] |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) | Apply to | notebook |
| Signal system | eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , termina , 30 pins | Appearance of size | 300.26 × 177.55 × 4.4 mm (H×V×D) |
| Maximum rated | Storage temperature: -20 ~ 60 °C Working temperature: 0 ~ 50 °C |
