Shenzhen Risingstar Outdoor High Light LCD Co., Lt
Brand: Risinglcd

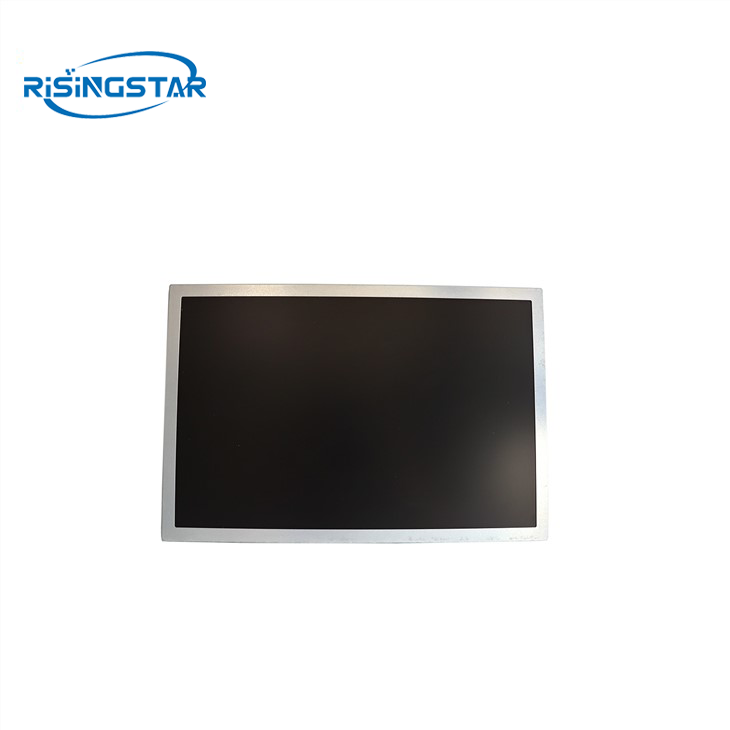

Risingstar 12.1 inch thin LCD screen-RS121ENT-N15 ，The brightness 1500 nits,This Lcd Module is based on G121EAN01.2 module through change the backlight light ,to reach high bright for outdoor used. high-quality backlight strip, can make the screen on the basis of the original module display higher brightness, Make the lcd screen daylight visibility.
12.1 inch thin lcd screen(RS121ENT-N15) this is industrial LCD Panel,high constrast 1000:1,Full viewing angle 89/89/89/89,with WLED backlight ,the backlight life 50k hours.
12.1 inch lcd screen can equipped with LED drive board,AD board,AC Adapter and cables. 12.1 inch lcd module with high quality and low price,Welcome to your order.
Paremeter
| Size | 12.1inch |
| Panel item | RS12.1NET-N15 |
| Panel type | a-Si TFT-LCD |
| Display mode | IPS,Normally black，transmissive display |
| Pixels | 1280*800 |
| brightness | 1500cd/m2 |
| Constrast Ratio | 1000:1 |
| Response Time | 25ms |
| View angle | 89/89/89/89 |
| View area | 264.22*168.12mm(H*V) |
| Dispaly area | 261.12163.2mm(H*V) |
| Outline Size | 278*184*9.94mm(H*V*D) |
| Signal Type | LVDS,30 pin |
| Working freqyency | 60Hz |
| Working temperature | -30~85℃ |
| Storage Temperature | -30~85℃ |
| Display ratio | 16:10 |
| Display color | 16.7m |
| Backlight Voltage | 3.3V |
| Surface Treatment | Haze |
| Weight | 0.39kgs |
