32 Inch Digital Signage Touch Screen Display
32 Inch Digital Signage Touch Screen Display
32 Inch Digital Signage Touch Screen Display
32 Inch Digital Signage Touch Screen Display
32 Inch Digital Signage Touch Screen Display

32 Inch Digital Signage Touch Screen Display

Min. Order:1 Piece/Pieces

Product Description
Product Attributes

Model No.RS320NET-ND10

Size32"

Brightness1000 nits

Resolution1920*1080

Operating Temperature0~50°C

Packaging & Delivery
Selling Units:
Piece/Pieces
Product Introduction:

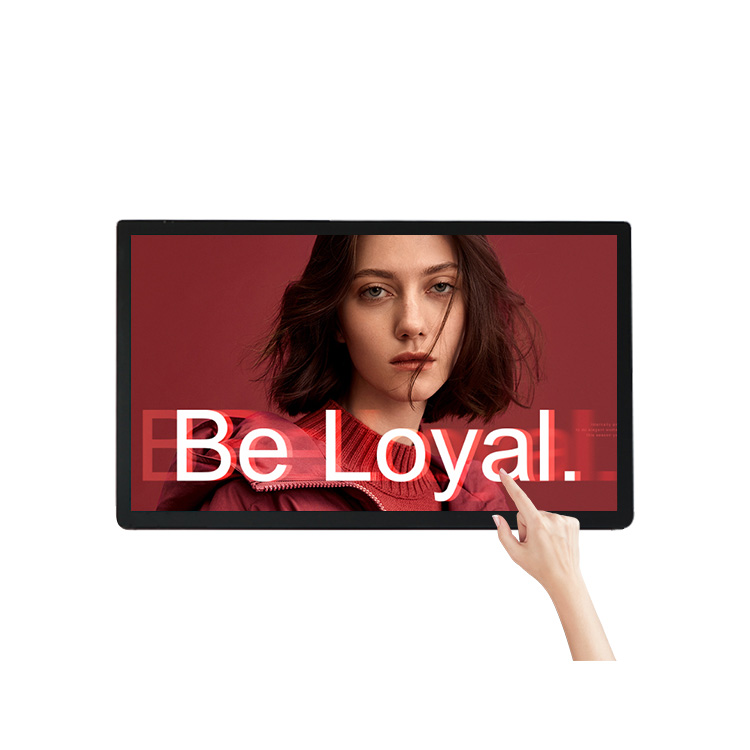

32 Inch Digital Signage Touch Screen display with PCAP touch. The brightness 1000 nits to 3500nits.This style Lcd Module with a built in HD Android media player, allowing you to update them using a USB. Load your pictures and videos onto a USB then insert it into the display, which will copy the files into its internal flash memory. Once you remove the memory stick the screen will then start playing the pictures and videos in a continuous loop.

The 32-inch touch screen monitor provides a larger display area for interactive display of other applications.

These touch screens are commonly used in commercial environments such as retail stores, restaurants, and offices, as well as in a variety of industries such as interactive kiosks, digital signage, and other applications that require large touch displays.

With their responsive touch technology, these screens provide customers with a variety of interactive experiences for navigating content, selecting options, and interacting with digital information.


      Product feature:

  •  1.TFT LCD Touch Screen panel

  •  2.1920*1080 resolution (3840*2160 optional)

  •  3.outdoor used ,the brightness from 500nits to 3500 nits optional

  •  4.Capacitive touch panel, covered with 2mm tempered glass for vandal proof

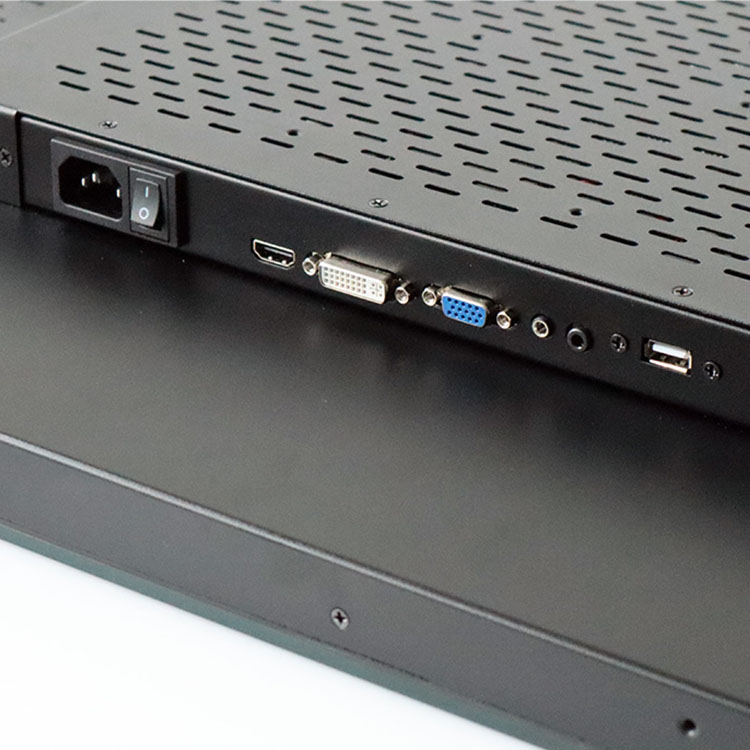

  •  5.VGA HDMI DVI USB interface

  •  6.High performance mainboard, 7/24 continuous operation

  •  7.Support 12-24V wide voltage

  •  8.Ultra-thin front bezel 3mm, ideal for embedded mounting


     lcd screen application


                                Embedded  LCD screen with touch
Model RS320NET-ND10
Waterproof No.  (Waterproof IP55/ip65 optional )
LCD Type 32inch TFT-LCD
Video Input VGA and DVI and HMI ect  (customized)
OSD controls Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply Type: External brick ;
Input (line) voltage: 100-240 VAC, 50-60 H
Output voltage/current: 12 volts
Mount Interface 1) VESA 75mm and 100mm
2) Mount bracket, horizontal or vertical
LCD Specification
Resolution 1920*1080p  FHD
Viewing angle (v/h) 89/89/89/89
Contrast 1300:1
Luminance(cd/m2) 1000  (500-3500nits optional)
Response Time 6s
Support Color 16.7M colors
Backlight MTBF(hr) 50000
Touchscreen Specification PCAP
Type 10 point capacitive  touch
Light Transmission 92%
Touch Life Cycle 50 millions
Touch Response time 16ms
Touch System Interface USB interface
Environment
Temperature Operating Temp. : 0~50°C Storage Temp. : -20~60°C
Humidity Operating RH. : 20%~80% Storage RH. : 10%~90%
