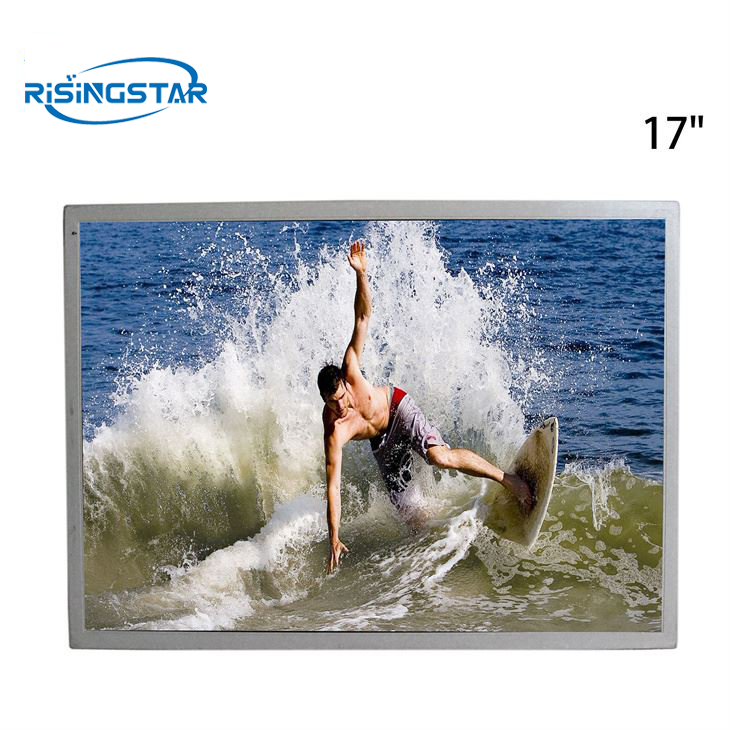

17.0 inch Innolux G170J1-LE1 high brightness 600nits TFT LCD Panel sunlight visible.
| brand | Innolux | Model name | G170J1-LE1 |
| size | 17.0 inch | Screen type | a-Si TFT-LCD,Lcd Module |
| resolution ratio | 1920(RGB)×1200 WUXGA 133PPI | Pixel configuration | RGB vertical bar |
| Display size | 365.76(H)×228.6(V) mm | Surface treatment | Mirror (Haze 0%) |
| Visual size | 369.0(H)×231.8(V) mm | Contrast Ratio | 2000:1 (Typ.) [transmission] |
| Brightness(cd/m²) | 600 cd/m² (Typ.)or customized | Outline dimension | 386.8(H)×250.8(V)×19(D) mm |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | | |
| Signal interface | 30 pins LVDS (2 ch, 8-bit),terminal | | |
| work environment | Storage temperature: -40 ~ 85 °C Working temperature: -20 ~ 80 °C | | |
